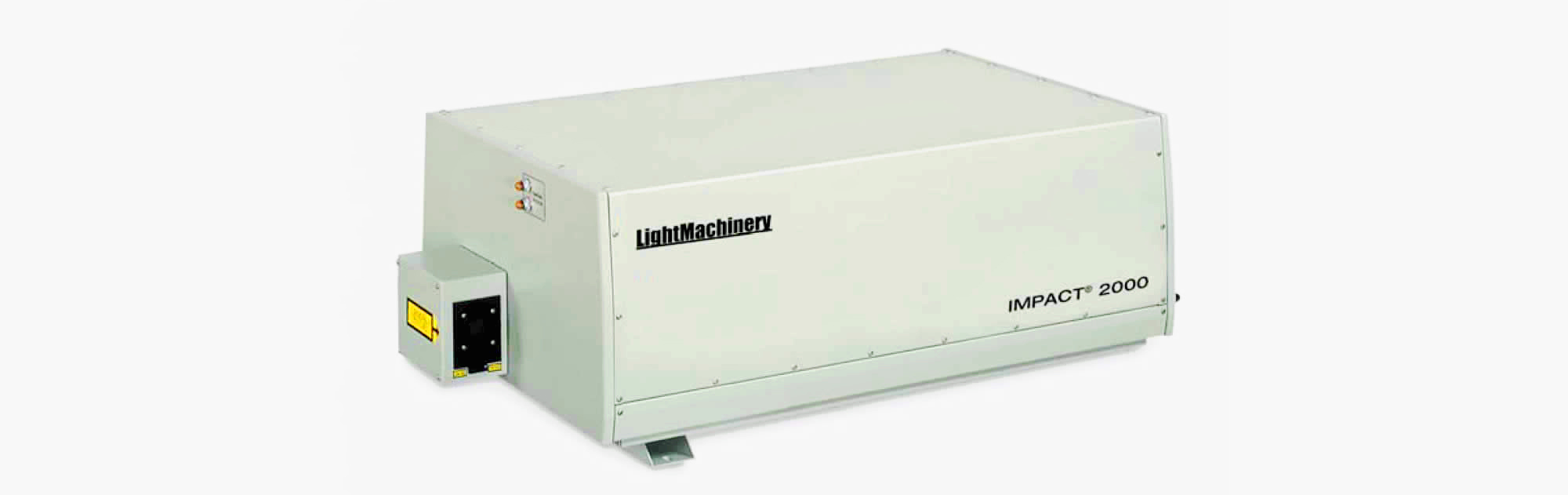

IMPACT 2000 Series Lasers
LightMachinery's IMPACT 2000 lasers are designed primarily for the fine processing of non-metallic materials. Drilling and machining are typical applications for these lasers. A unique capability of the IMPACT laser is the ability to drill through non-metallic layers on a metal substrate with no damage to the underlying metal layer. This capability proves very effective in applications such as printed circuit board drilling, wire stripping and mold cleaning.
The IMPACT 2000 series of lasers all incorporate high reliability SSM switch technology as well gas filtering systems to ensure very high uptimes and low maintenance even at continuous 75W power delivery 24/7.
Precision holes drilled in a high value tablet using an IMPACT laser system. Tablets are loaded into precision movement tracks to ensure precise hole location and depth. Try our simple Pulsed Laser Energy Density calculator to help you determine the mark size and speed for your application LaserMark system. Two laser drilled micro-via holes in a high density multilayer cell phone printed wiring board, PWB. Stripping Polyimide from pads on flex; the pads are 300µm wide, a fast scanning system desgined by Optec was used to achieve high throughput. All LightMachinery CO2 lasers are available in 10.6um and 9.3um output versions. Our Applications lab can help determine the best wavelength for your application. Shown here is an infrared spectrometer reading showing the 9.3um transition. Applications Lab
LightMachinery's laser application lab is ready to process your samples using CO2 and excimer lasers. We can investigate the correct wavelength, pulse length and energy parameters to ensure the best possible results. Best of all, its free just contact us about your application.Contact us
For more information, free sample marking or processing, or to answer any questions about these products, call us at (613) 749-7263, fill out our simple contact form below or email us at support@lightmachinery.comInformation or Quote Request
